T 265P

BLUWELD
BLUWELD T 265P
BLUWELD T 265P

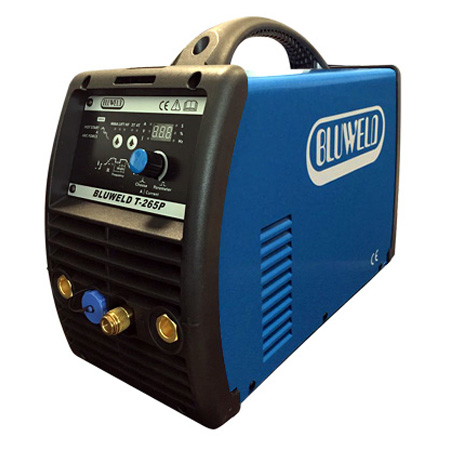

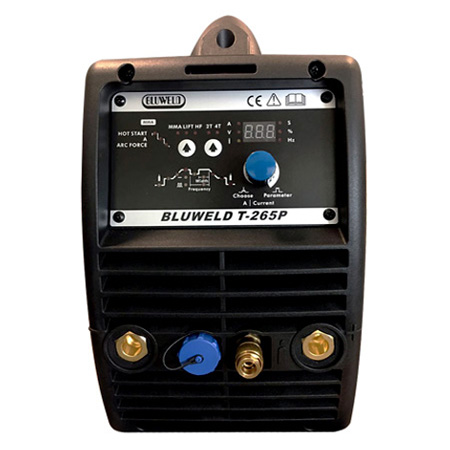

Pulse TIG welding machine manufactured with inverter technology.

High frequency (HF) capability, arc starting is achieved without touching the tungsten electrode workpiece.

Voltage fluctuations (± 10%) caused by the network are shattered and prevent malfunctions which may occur in this network.

With 2T / 4T trigger settings, it provides ease of welding in long or precise work.

Welding errors that can occur with crater filling and gas feature are easily avoided.

Digital ampermeter indicator.

Compatible with generators.

The water cooling and transport unit is optional.

It is optional with foot pedal.


  • Pulse TIG
  • MMA
Input Voltage 3~380V±10%
Frequency 50/60 Hz
Power 8,7 Kw
Power Factor 0,75
Current Range 5-250A
Rated Output Current 71 V
Voltage and Duty Cycle (40°C) 250 A,35%
Pulse Frequency Range 0,5-200 Hz
Pulse Width Field 5-95%
Dimensions 350x190x457 mm
Weight 11,8 Kg
Protection Class IP 23
