Diesel Engine driven welder - Yanmar L70N Engine - Permanent magnet alternator - Single-phase generation 3.3kVA - Max welding current: 200A

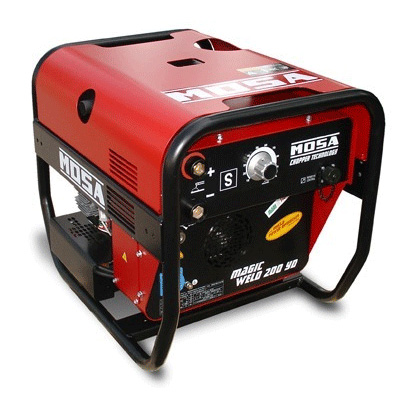

The engine-driven welder Magic Weld 200 YD is a lightweight, professional machine with electronic control of the welding current capable of delivering up to 200 A with a duty cycle of 60%.

The Magic Weld 200 YD combines 3 qualities: compact and light weight (only 72 Kg); chopper system; an inverter capable of generating 3.3 kVA of auxiliary power. Equipped with a YANMAR L70N diesel engine and a permanent magnet alternator, it can function simultaneously as a welder and generator.

The Magic Weld 200 YD is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm and takes full advantage of the engine's power output thanks to a technology developed by MOSA known as "Power Optimizer".

Its weight and performance make it a machine suitable for maintenance and mobile welding.

In according with CE regulation

Accessories

• CTM-MW200 Trolley

• RC2/90° Remote Control

Technical Properties

ENGINE
Model	Yanmar L70N
Fuel	Diesel
Starter	Electric
Output	4.9 kW (6.7 HP)
Cylinders / Displacement	1 / 320 cm3
Speed	3600 rpm
Cooled	Air
WELDING
Current range, continuous	20-200 A
Duty cycle	170 A %60
Open circuit voltage	70 V
GENERAL
Dry weight	72 kg
Dimensions	630x490x540 mm
Acoustic power LwA (pressure LpA):	103 dB(A) (78 dB(A) @ 7 m)
VERSIONS ON REQUEST
Auxiliary output 230V c.c.	1x230V 16A 2P+T CEE
Auxiliary output 230V c.a.	1x230V 16A 2P+T schuko
Auxiliary output	110V 50Hz
Auxiliary output	110V 60Hz
