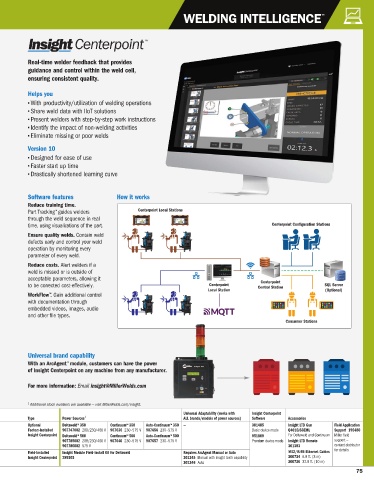

Page 75 - millerwelds catalog_2022

A FLE23 Cat P 75 Insight.qxp_Welding Intelligence 1/11/24 5:45 PM Page 1

WELDING INTELLIGENCE ™

Real-time welder feedback that provides
guidance and control within the weld cell,
ensuring consistent quality.

Helps you
With productivity/utilization of welding operations
Share weld data with IIoT solutions
Present welders with step-by-step work instructions
Identify the impact of non-welding activities
Eliminate missing or poor welds

Version 10
Designed for ease of use
Faster start up time
Drastically shortened learning curve

Software features How it works
Reduce training time.
Part Tracking guides welders Centerpoint Local Stations
™
through the weld sequence in real
time, using visualizations of the part. Centerpoint Configuration Stations
Ensure quality welds. Contain weld
defects early and control your weld
operation by monitoring every
parameter of every weld.
Reduce costs. Alert welders if a
weld is missed or is outside of
acceptable parameters, allowing it
to be corrected cost-effectively. Centerpoint Centerpoint SQL Server
Central Station
Local Station (Optional)
WorkFlow . Gain additional control
™
with documentation through
embedded videos, images, audio
and other file types.
Consumer Stations

Universal brand capability
™
With an ArcAgent module, customers can have the power
of Insight Centerpoint on any machine from any manufacturer.

For more information: Email insight@MillerWelds.com

1 Additional stock numbers are available — visit MillerWelds.com/insight.
Universal Adaptability (works with Insight Centerpoint
Type Power Sources 1 ALL brands/models of power sources) Software Accessories
Optional Deltaweld® 350 Continuum ™ 350 Auto-Continuum ™ 350 — 301485 Insight LTD Gun Field Application
Factory-Installed 907747002 208/230/460 V 907636 230–575 V 907656 230–575 V Basic device mode Q4015JS3EML Support 195480
Insight Centerpoint Deltaweld® 500 Continuum ™ 500 Auto-Continuum ™ 500 951809 For Deltaweld and Continuum Miller field
907785002 208/230/460 V 907640 230–575 V 907657 230–575 V Premium device mode Insight LTD Remote support —
907786002 575 V 301383 contact distributor
for details
Field-Installed Insight Module Field-Install Kit for Deltaweld Requires ArcAgent Manual or Auto M12/RJ45 Ethernet Cables
Insight Centerpoint 289303 301345 Manual with Insight torch capability 300734 9.8 ft. (3 m)
301346 Auto 300736 32.8 ft. (10 m)
