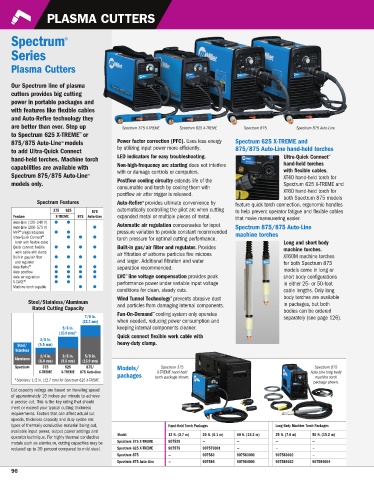

Page 96 - millerwelds catalog_2022

A FLE24 Cat P 96 Plasma.qxp_Plasma 1/11/24 5:53 PM Page 1

PLASMA CUTTERS

Spectrum ®

Series

Plasma Cutters

Our Spectrum line of plasma
cutters provides big cutting
power in portable packages and
with features like flexible cables
and Auto-Refire technology they
are better than ever. Step up Spectrum 375 X-TREME Spectrum 625 X-TREME Spectrum 875 Spectrum 875 Auto-Line
™
to Spectrum 625 X-TREME or
875/875 Auto-Line models Power factor correction (PFC). Uses less energy Spectrum 625 X-TREME and
™
by utilizing input power more efficiently. 875/875 Auto-Line hand-held torches
to add Ultra-Quick Connect
LED indicators for easy troubleshooting. Ultra-Quick Connect ™
hand-held torches. Machine torch
capabilities are available with Non-high-frequency arc starting does not interfere hand-held torches
with or damage controls or computers. with flexible cables.
Spectrum 875/875 Auto-Line ™ XT40 hand-held torch for
Postflow cooling circuitry extends life of the
models only. Spectrum 625 X-TREME and
consumable and torch by cooling them with
XT60 hand-held torch for
postflow air after trigger is released.
both Spectrum 875 models
Spectrum Features Auto-Refire provides ultimate con venience by feature quick torch connection, ergonomic handles
™
375 625 875 automatically controlling the pilot arc when cutting to help prevent operator fatigue and flexible cables
Feature X-TREME 875 Auto-Line expanded metal or multiple pieces of metal. that make maneuvering easier.
Auto-Line (120–240 V)
Auto-Line (208–575 V) Automatic air regulation compensates for input Spectrum 875/875 Auto-Line
MVP ™ plugs/adapters pressure variation to provide constant recommended machine torches
Ultra-Quick Connect ™ torch pressure for optimal cutting performance.
torch with flexible cable Long and short body
Quick connect flexible Built-in gas/air filter and regulator. Provides machine torches.
work cable with clamp air filtration of airborne particles five microns
Built-in gas/air filter XT60M machine torches
and regulator and larger. Additional filtration and water for both Spectrum 875
Auto-Refire ™ separation recommended.
Auto postflow models come in long or
™
Auto air regulation LVC line voltage compensation provides peak short body configurations
X-CASE ™ performance power under variable input voltage in either 25- or 50-foot
Machine torch capable
conditions for clean, steady cuts. cable lengths. Only long
Wind Tunnel Technology prevents abrasive dust body torches are available
™
Steel/Stainless/Aluminum and particles from damaging internal components. in packages, but both
Rated Cutting Capacity bodies can be ordered
™
Fan-On-Demand cooling system only operates
7/8 in. separately (see page 126).
(22.2 mm) when needed, reducing power consumption and
5/8 in. keeping internal components cleaner.
(15.9 mm)*
Quick connect flexible work cable with
3/8 in.
Steel/ (9.5 mm) heavy-duty clamp.
Stainless
1/4 in. 3/8 in. 5/8 in.
Aluminum
(6.4 mm) (9.5 mm) (15.9 mm)
Spectrum 375 625 875/ Models/ Spectrum 375 Spectrum 875
X-TREME X-TREME 875 Auto-Line X-TREME hand-held Auto-Line long body
packages torch package shown. machine torch
*Stainless: 1/2 in. (12.7 mm) for Spectrum 625 X-TREME.
package shown.
Cut capacity ratings are based on traveling speed
of approximately 15 inches per minute to achieve
a precise cut. This is the key rating that should
meet or exceed your typical cutting thickness
requirements. Factors that can affect actual cut
speeds, thickness capacity and duty cycles are:
types of thermally conductive material being cut, Hand-Held Torch Packages Long Body Machine Torch Packages
available input power, output power settings and
Model 12 ft. (3.7 m) 20 ft. (6.1 m) 50 ft. (15.2 m) 25 ft. (7.6 m) 50 ft. (15.2 m)
operator technique. For highly thermal conductive
metals such as aluminum, cutting capacities may be Spectrum 375 X-TREME 907529 — — — —
reduced up to 30 percent compared to mild steel. Spectrum 625 X-TREME 907579 907579001 — — —
Spectrum 875 — 907583 907583001 907583002 —
Spectrum 875 Auto-Line — 907584 907584001 907584002 907584004
96
