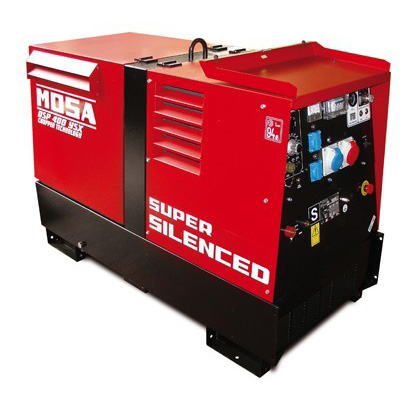

DSP 400 YSX

Diesel Engine driven welder - YANMAR 3TNV76 Engine - Three-phase asyncronous alternator - Three-phase generation 12 kVA - Single-phase generation 7 kVA - Max welding current: 400A

The engine-driven welder DSP 400 YSX is a professional multi process machine with digital adjustment of the welding parameters DSP (Digital Signal Processor) and welding circuit with Chopper System (high frequency 20 kHz) capable of delivering up to 400 A with a duty cycle of 60%.

Equipped with a Yanmar 3TNV76 water cooled diesel engine and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 12 kVA.

Designed to meet the requirements of professional welding in direct current, a selector switch allows the operator to choose between 5 different welding programs:

LIFT ARC TIG – TIG welding by controlling start-up in "Lift Arc" mode. The arc begins with a simple contact of the electrode on the workpiece and lifting the tungsten electrode from the workpiece initiates the arc without inclusion.

MMA STICK (3 PROGRAMS) – Specific for MMA ELECTRODE (CC) welding, they offer three different levels of arc force, with increasing short-circuit currents including cellulosic.

MIG MAG – Dedicated to SOLID WIRE OR FLUX-CORED WELDING, providing a constant voltage (CV) welding process with optional MOSA WF4 Wire Feed Unit.

The DSP 400 YSX is a super-silent engine-driven welder with compact canopy, suitable for a wide range of applications, including large metal fabrications oil pipelines and construction sites.

In according with CE regulation


  • WF4 Wirefeeder
  • CTL400 Trolley
  • CTV4 Trolley
  • RC1 Remote Control
  • RC2/90° Remote Control
ENGINE
Model Yanmar 3TNV76
Fuel Diesel
Starter Electric
Output 16.5 kW (25.4 HP)
Cylinders / Displacement 3 / 1116 cm3
Speed 3000 rpm
Cooled Water
WELDING
Current range, continuous 10-400 A
Duty cycle 400 A 35%
350 A 60%
300 A 100%
Open circuit voltage 65 V
GENERAL
Dry weight 530 kg
Dimensions 1610x720x1110 mm
Acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @ 7 m)
