Diesel Engine driven welder - PERKINS 1103A - 33TG1 Engine - Three-phase asyncronous alternator - Three-phase generation 40 kVA - Single-phase generation 20 kVA - Max welding current: 2X400A

The engine-driven welder TS 2x400 PS BC allows the operators to work with two welding positions, each independent, with a current of 2X400A.

This professional machine has electronic control of the welding current capable of delivering up to 2x360A with a duty cycle of 60%.

Equipped with a Perkins water cooled diesel engine 1100 series and an asynchronous alternator and thanks to the lower engine speed (1500 rpm) it is suitable for continuous operation in all conditions and can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 40 kVA.

The TS 2x400 PS-BC is designed to satisfy the requirements of professional welding with direct current and can weld any kind of electrode (rutile, basic, cellulose) up to 8 mm in diameter. The characteristic BC (base current) is particularly suitable for vertical down pipe welding.

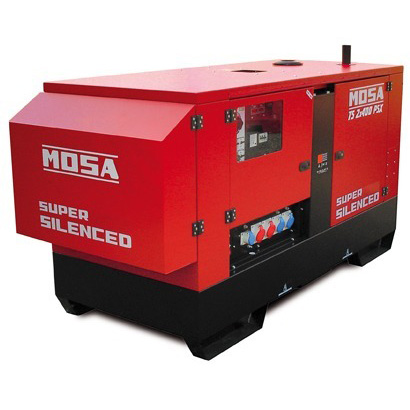

It is a super-silenced engine-driven welder with compact fairing. It can function simultaneously as a welder and as a three-phase and single-phase electrical generator.

Suitable for a wide range of applications, including large metal fabrications oil pipelines and construction sites.

In according with CE regulation

Accessories

• CTL45 Trolley

• RC2/90° Remote Control

Technical Properties

ENGINE
Model	Perkins 1103A - 33TG1
Fuel	Diesel
Starter	Electric
Output	45.6 kW (62 HP)
Cylinders / Displacement	3 / 3300 cm3
Speed	1500 rpm
Cooled	Water
WELDING
Current range, continuous	20-400 A
Duty cycle	2x400 A 35% 2x360 A 60% 2x330 A 100%
Open circuit voltage	68 V
GENERAL
Dry weight	1300 kg
Dimensions	2490x1030x1480 mm
Acoustic power LwA (pressure LpA):	89 dB(A) (64 dB(A) @ 7m)
